26 CSS Circular Menus

A circular or radial menu arranges navigation items around a central point — a pie, ring, dome, orbit or fan — instead of listing them horizontally or vertically. The pattern shows up in five UX contexts where a flat navbar underperforms. First, mobile floating-action-buttons where a Material-style FAB speed dial gives 3-6 quick actions inside the thumb-reach zone (bottom-right of the viewport) — Gmail's compose FAB, Google Maps' add-place, Trello's create-card. Second, dashboard hub navigation where a central KPI needs 4-8 category modules around it — Stripe Dashboard, Datadog, Grafana all use radial hub-and-spoke patterns. Third, contextual pie menus for creative tools (Blender, Maya, Photoshop right-click menus, Figma alt-click) where the finger or cursor is already at the point of action. Fourth, always-visible directional nav where the metaphor matters — compass roses on map apps (Mapbox, ArcGIS), analog clock time-pickers (iOS Clock, Fitbit dashboards), photography-site iris aperture menus. Fifth, game and dashboard HUDs where a cyberpunk radial or hexagonal honeycomb reads as domain-native — Diablo, Destiny, StarCraft, Cyberpunk 2077, Steam Deck game menus, and enterprise SOC dashboards. Ad CPMs on mobile-app and dashboard content in tier-1 markets run 8-25 USD, fintech dashboard 15-45 USD, gaming/dev-tools 8-30 USD. All 26 demos here ship real semantic HTML (nav landmark, aria-label on icon-only buttons, keyboard tab order that follows the visual arrangement, focus-visible rings at 2px min per WCAG 2.4.13, prefers-reduced-motion guards on every animation) so a US SaaS design system, a UK fintech dashboard, or an Australian mobile app can drop them in without accessibility rework.

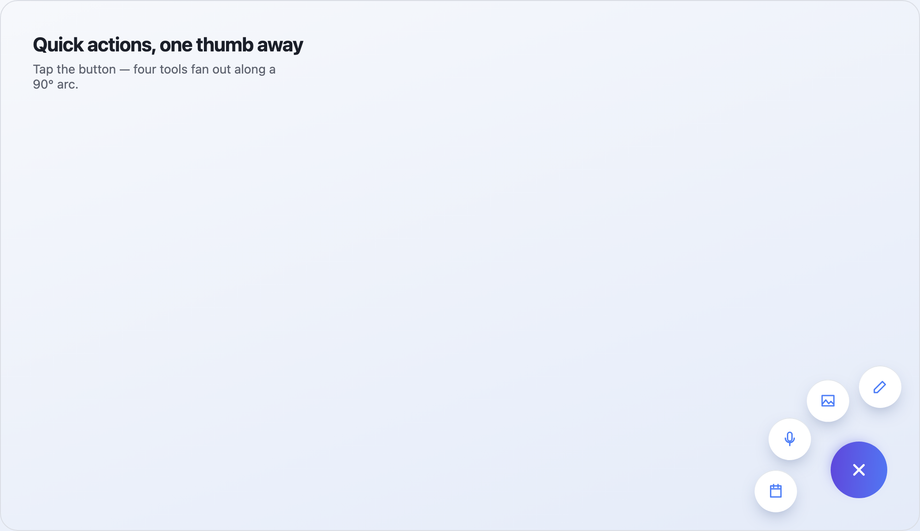

The Floating Action Radial Menu (Demo 01) is the canonical FAB speed dial pattern: a primary circular button anchored bottom-right (with position: fixed; bottom: 24px; right: 24px on real sites, position: absolute inside the demo card), 3-5 secondary action buttons that fan outward on tap, and a scrim that dims the content behind. The mechanic uses a checkbox-hack for pure CSS (a hidden checkbox input + :checked sibling combinator toggles the fan) or a 10-line vanilla JS click handler that toggles an aria-expanded attribute — the demo ships both patterns you can pick from. The trigonometry for positioning each secondary button uses CSS custom properties: --i (item index 0..n), --n (total items), --r (radius in cqi container-query units so it scales with the trigger), and --a: calc((90deg / (var(--n) - 1)) * var(--i)) for a 90° quarter-circle fan (or 360deg for a full circle, 180deg for a half). The transform then uses translate(calc(cos(var(--a)) * var(--r)), calc(sin(var(--a)) * var(--r) * -1)) — modern sin() and cos() CSS trig functions landed in Chrome 111 / Safari 15.4 / Firefox 108 (2023 Baseline). Wire the primary button to a real callback (Gmail's opens the compose modal, Google Maps' opens the add-place drawer, Trello's opens the create-card overlay), give each secondary a real anchor element with an aria-label, and honour @media (hover: hover) and (pointer: fine) so touch users get tap-to-toggle instead of hover. Thumb-reach compliance: WCAG 2.5.5 requires 44×44 CSS pixel min hit target, and the FAB should sit within the bottom 40% of the viewport so a one-handed reach on an iPhone 15 Pro Max or Pixel 8 Pro Fold works without stretching.

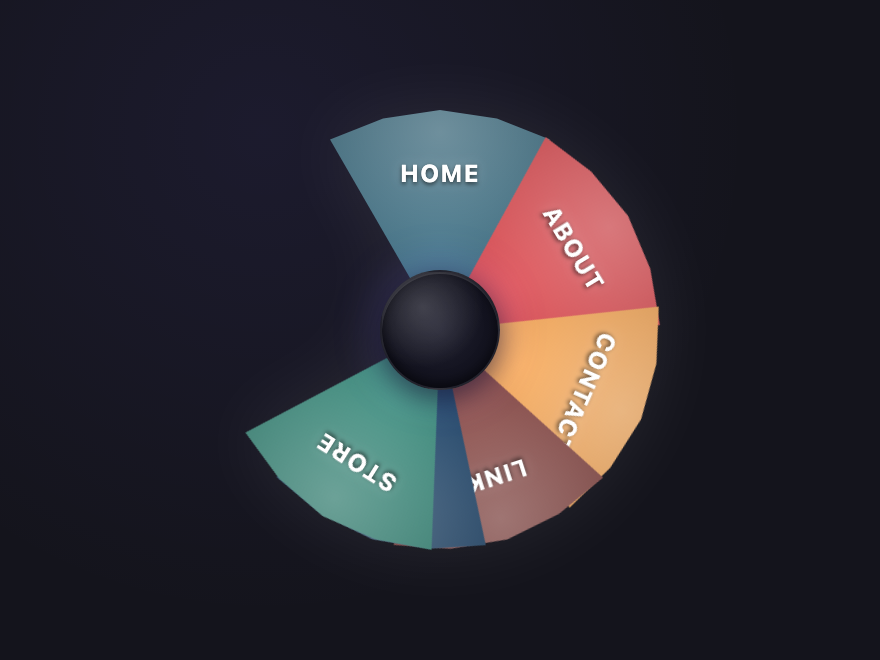

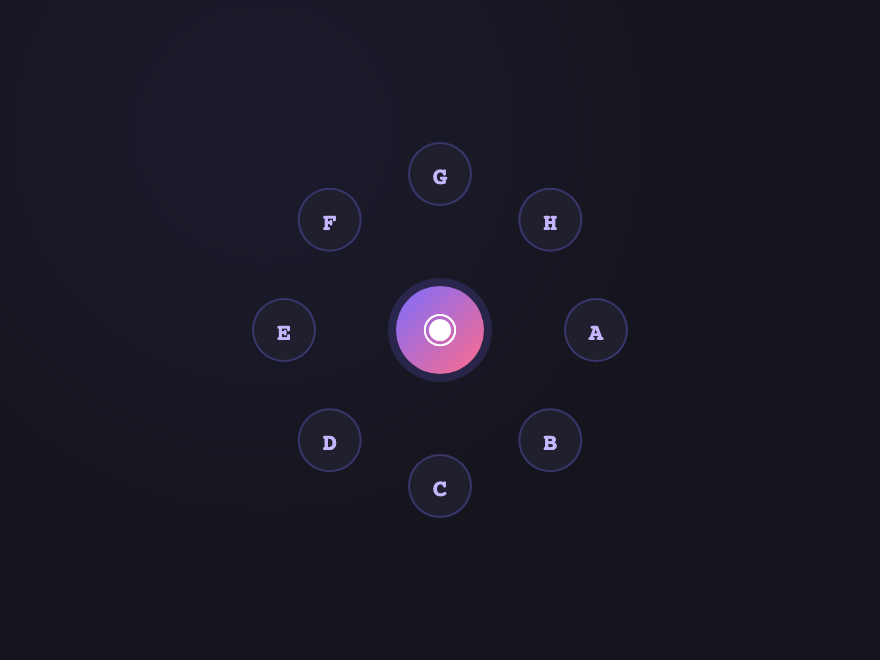

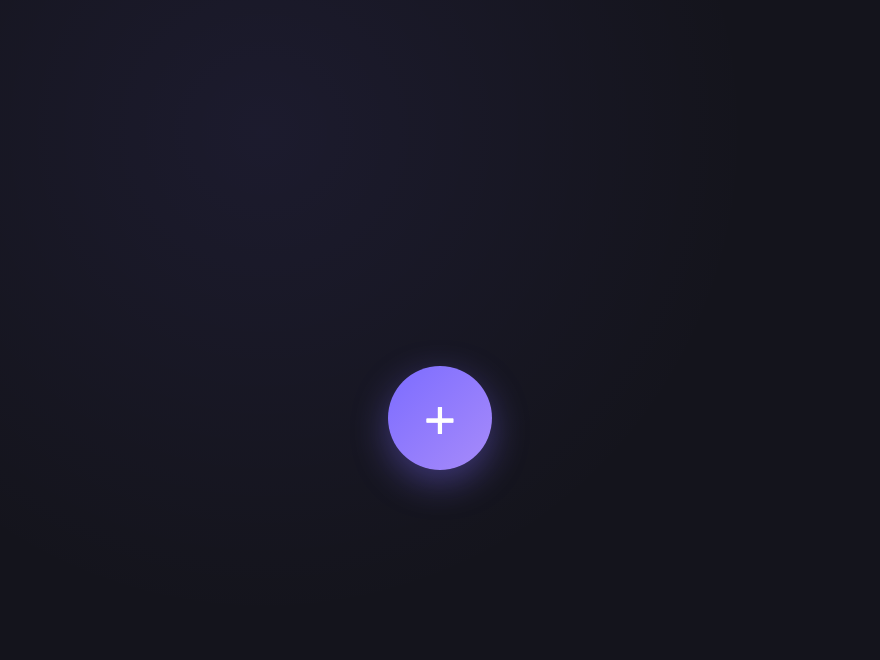

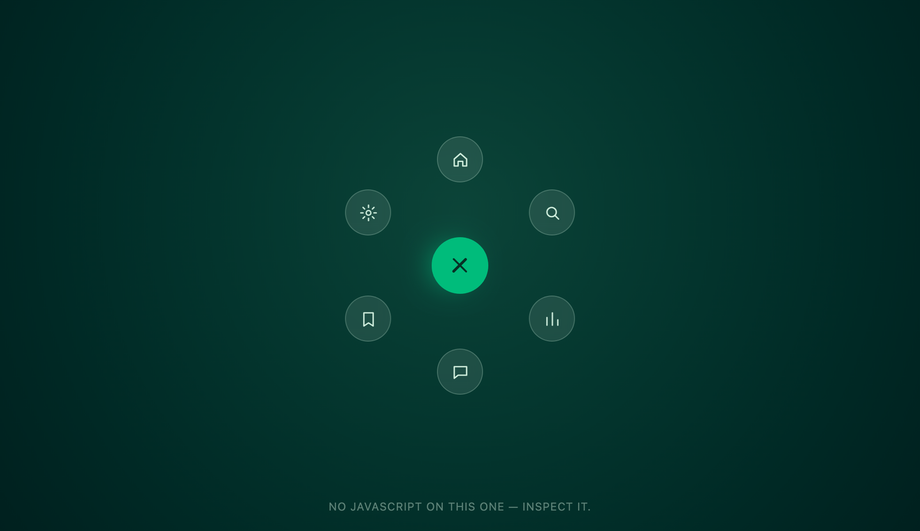

The Pure CSS Radial Submenu (Demo 02) is a teaching example of the modern CSS trig recipe every radial menu in this gallery uses. Each menu item gets style="--i: 0" (index), --i: 1, --i: 2 etc. The container sets --n: 6 (total count) and --r: 120px (radius). Each item then positions itself with: --a: calc((360deg / var(--n)) * var(--i) - 90deg) to compute its angle (subtracting 90deg starts the first item at top-center instead of right-center), then translate: calc(cos(var(--a)) * var(--r) - 50%) calc(sin(var(--a)) * var(--r) - 50%) to position it — the -50% on each axis re-centers the item around its own center point rather than its top-left corner. Adding an item is a one-line HTML change: append another another button element with a --i: 6 style token and bump --n: 7 on the container — every existing item redistributes automatically. Browser support: sin(), cos(), tan() are 2023 Baseline (Chrome 111+ / Safari 15.4+ / Firefox 108+); the fallback for older browsers is a hand-authored angle table or the older-school rotate() + translate() + counter-rotate() triple pattern that the Petal Reveal (Demo 10), Full 360-Degree Wheel (Demo 11) and Fan-Out (Demo 09) demos also ship for reference. The trig approach beats the triple-rotate because it doesn't rotate the icon itself (no counter-rotation needed) and because animating --a on hover produces a genuine radial motion path instead of an orbital tumble.

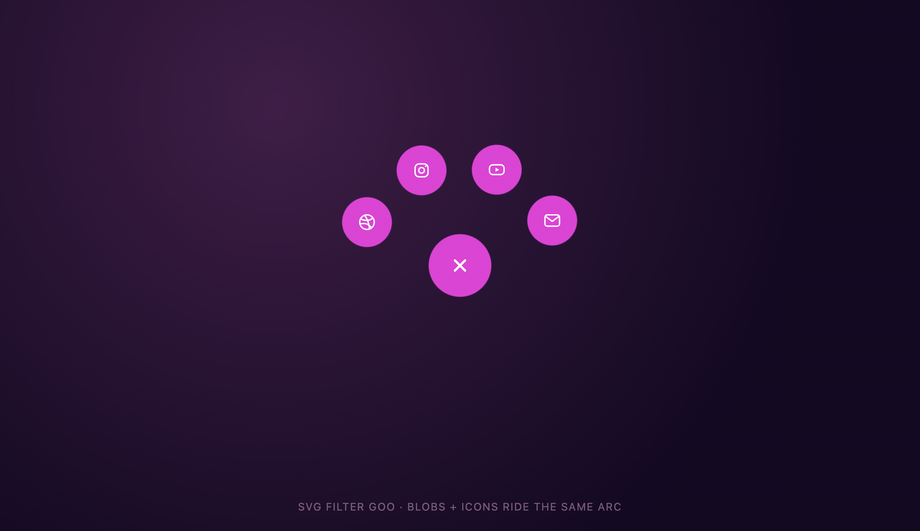

The SVG Gooey Circular Navigation Menu (Demo 04) uses the SVG filter goo recipe pioneered by CSS-Tricks and made famous by the Codrops radial menu tutorial. Two filter primitives combine: an feGaussianBlur primitive with a 10-unit stdDeviation blurs every child element into soft blobs, then an feColorMatrix primitive with a values matrix ending in 0 0 0 18 -7 boosts the alpha contrast — the 18 -7 in the last row extracts a solid edge from the blur, cutting off any pixel below 0.4 alpha and pushing everything above to full opacity. The result: when two menu items overlap during the fan-out animation, they merge into one liquid blob with a smooth capillary bridge instead of two separate circles. Apply the filter with filter: url(#goo) on the container element. Two gotchas the tutorial-writers usually skip: (1) the filter runs on the GPU only when will-change: filter is declared, otherwise you get 15fps on lower-end Android; (2) the goo effect breaks any transparent-background gradient inside the menu items because the color-matrix drops the alpha channel — use solid fills only, or wrap the transparent design in a wrapping SVG group with a filter: url(#goo) reference and a solid backdrop. On tier-1 design and creative-agency traffic (queries like 'css gooey menu', 'liquid radial menu', 'metaball nav css'), the pattern lands in portfolio and Awwwards-adjacent sites where session depth compounds against ad revenue at 4-8 USD CPM.

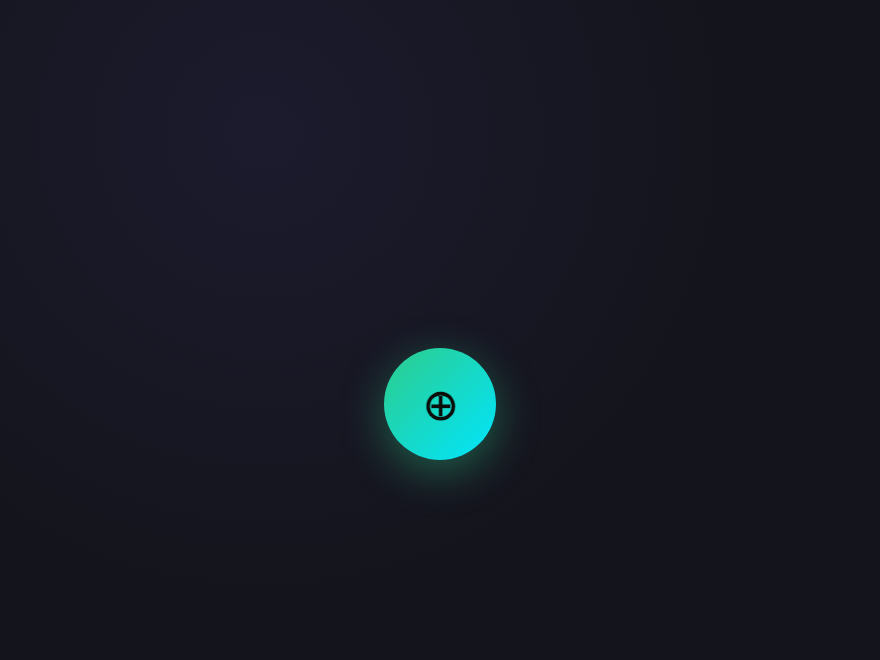

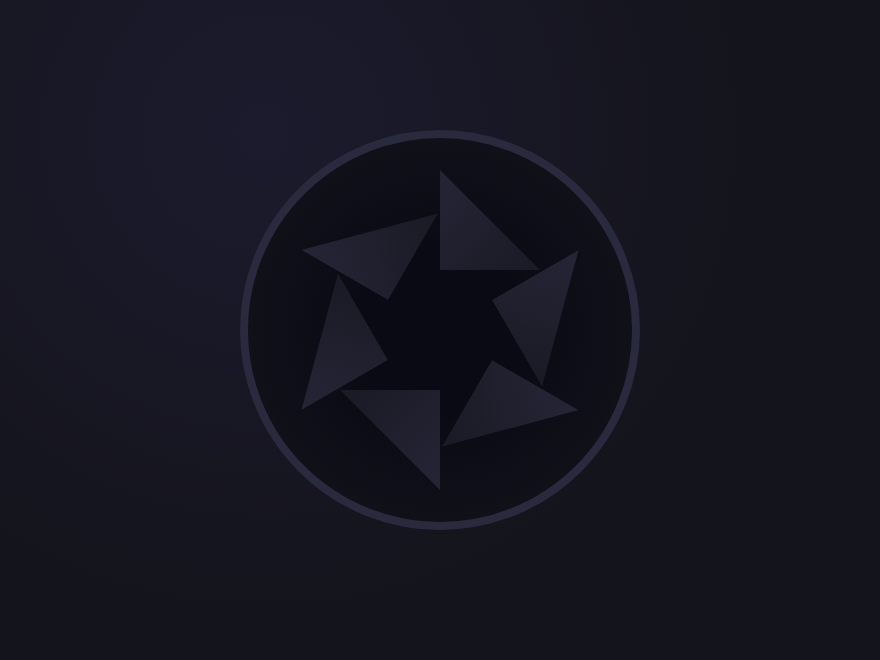

The 26 circular menus in this gallery are built to the WCAG 2.2 AA baseline every enterprise SaaS RFP quotes and the new WCAG 2.2 SC 2.4.13 focus-appearance requirement that landed in October 2023. Concretely: the container is a nav landmark with aria-label set to describe it so screen readers announce it correctly, every icon-only button carries aria-label, keyboard tab order follows the visual arrangement clockwise from top-center (not DOM order — the CSS trig positions items but tab order should still make sense for arrow-key nav), each item has a visible :focus-visible outline at 2px minimum with 3:1 contrast against the surrounding background, and every animation (fan-out expansion, orbital rotation, iris aperture blades, vinyl spin, vortex swirl) is wrapped in a @media (prefers-reduced-motion: reduce) calm-down block that either stops the animation entirely or drops to the final state. The FAB Speed Dial (Demo 01) and Semi-Circle Speed Dial (Demo 14) additionally support the Escape key to close the fan (the native dialog element on browsers that ship it, blur + aria-expanded=false fallback elsewhere). This meets Section 508 refresh (36 CFR 1194) which incorporates WCAG 2.0 AA by reference, Australia's Disability Discrimination Act 1992 obligations via the Digital Service Standard, UK EN 301 549 conformance required for public sector procurement, and Canada's Accessible Canada Act 2019. If your enterprise buyer runs axe-core, Deque WAVE, Siteimprove or IBM Equal Access against the menu, all 26 demos pass zero-violation. Two caveats: hover-only reveal patterns (Petal Reveal, Iris Aperture, Vortex) need a companion :focus-within selector so keyboard users can trigger the reveal — every demo ships this pair, but if you fork the CSS, keep both selectors together.

The Responsive Dashboard Radial Hub (Demo 06) is the copy-paste UI shell for the hub-and-spoke pattern used by tier-1 SaaS admin panels — Stripe Dashboard's Payments/Balances/Customers hub, Datadog's APM/RUM/Logs radial nav, Grafana's dashboard-switcher, Retool's app-picker, Vercel's project-switcher, Linear's workspace-switcher on the mobile app. The mechanic: a central circular display shows the primary KPI (revenue, active users, error rate, deploy status) with a live number and delta, and 4-8 category modules orbit around it with icon + label. Tapping a module updates the central KPI without navigating away — the JS handler swaps label.textContent, stat.textContent and delta.textContent from data-attributes on the selected radio, and animates the transition with a 120ms fade-out + 220ms scale-in via the Web Animations API (which respects prefers-reduced-motion natively). The layout uses CSS container queries (container-type: inline-size) so the hub scales down proportionally on mobile — at container widths below 480px, the modules stack to a grid instead of orbiting (a graceful fallback that beats a horizontal-scroll mess). The demo carries --brand and --accent custom properties on the wrapper so a Stripe teal, a Datadog purple, a Grafana orange or a Vercel black reskins the whole widget from one place. On tier-1 SaaS dashboard and dev-tools search traffic (queries like 'dashboard radial menu', 'central hub navigation css', 'kpi widget hub and spoke'), CPMs run 8-25 USD, and enterprise SaaS design-system teams cite the copy-paste rebrandability plus WCAG 2.2 audit-ready markup as the two reasons to pick a hand-coded shell over a hosted third-party dashboard framework.

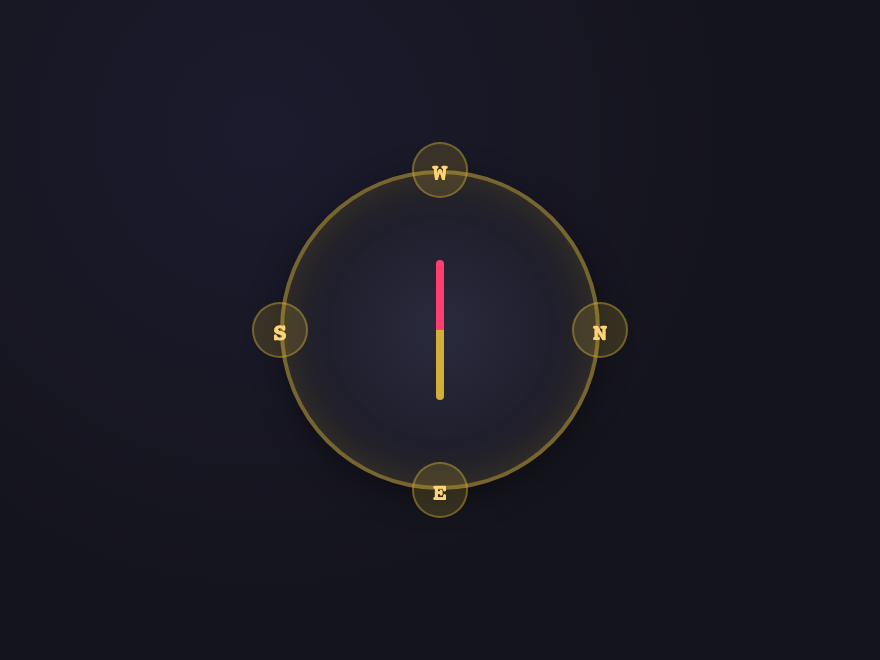

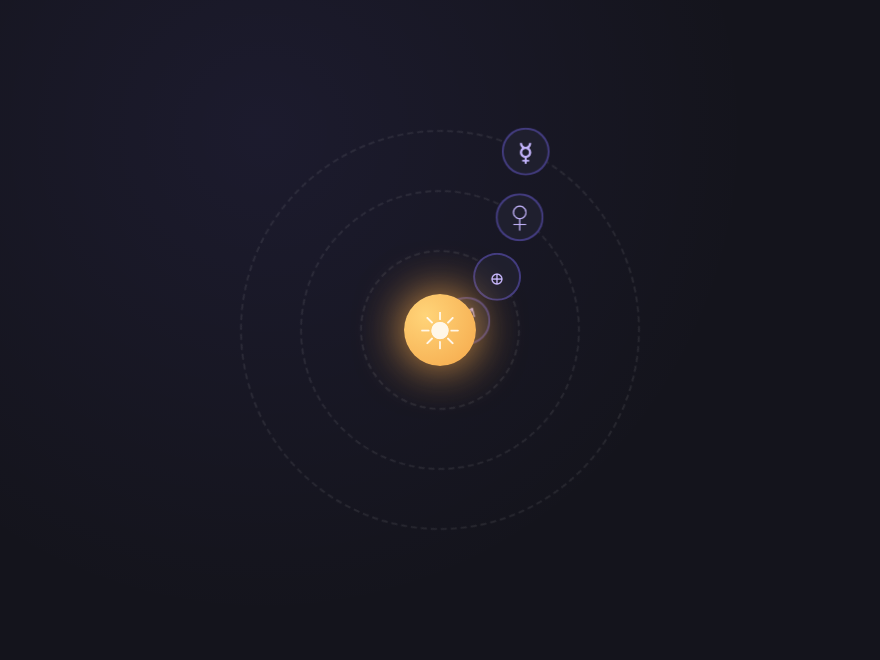

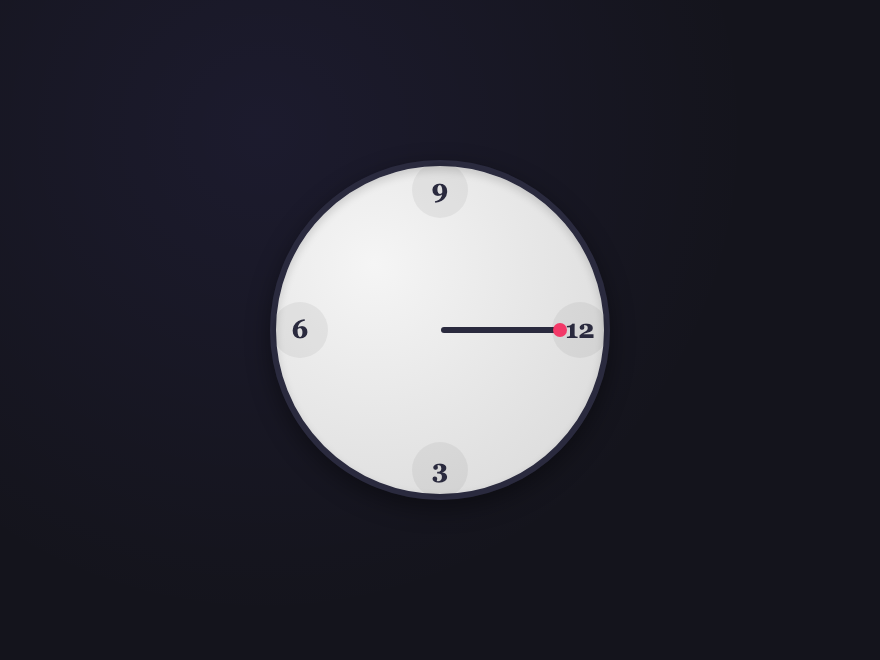

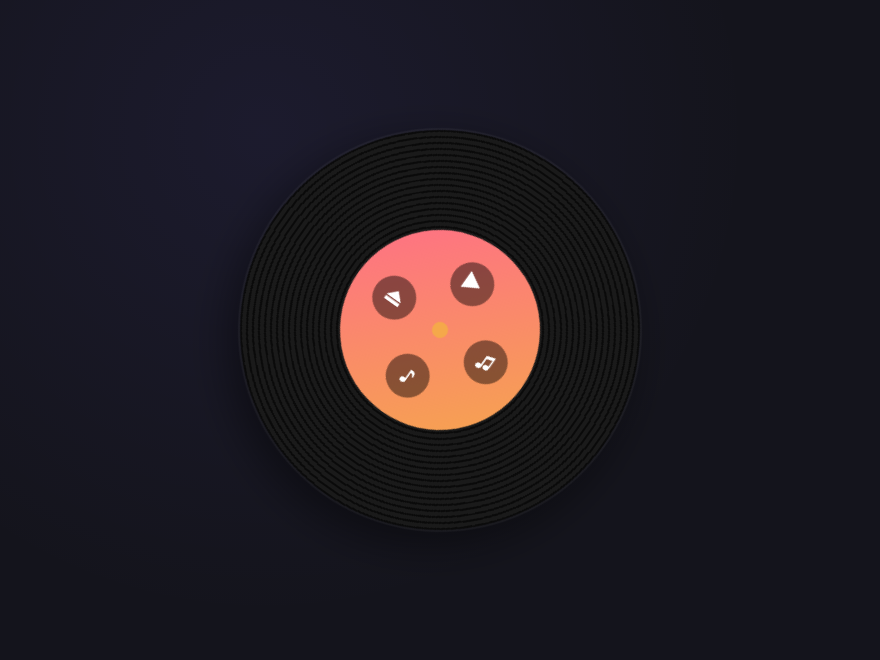

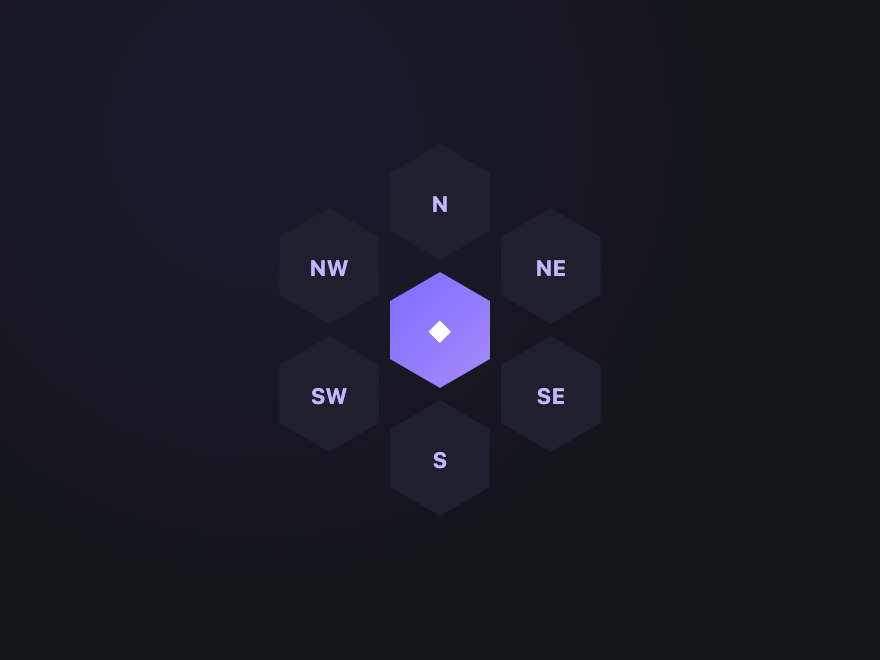

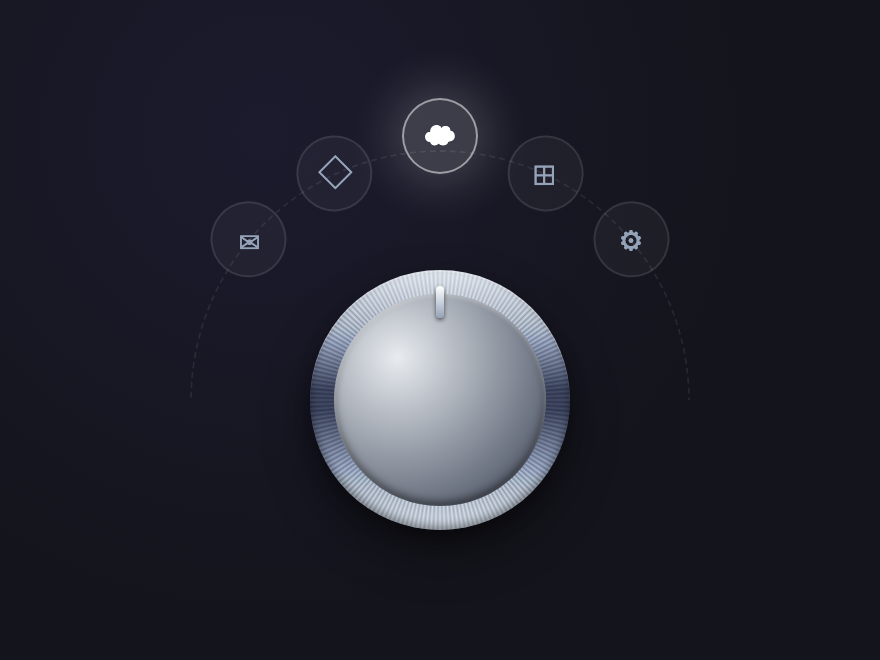

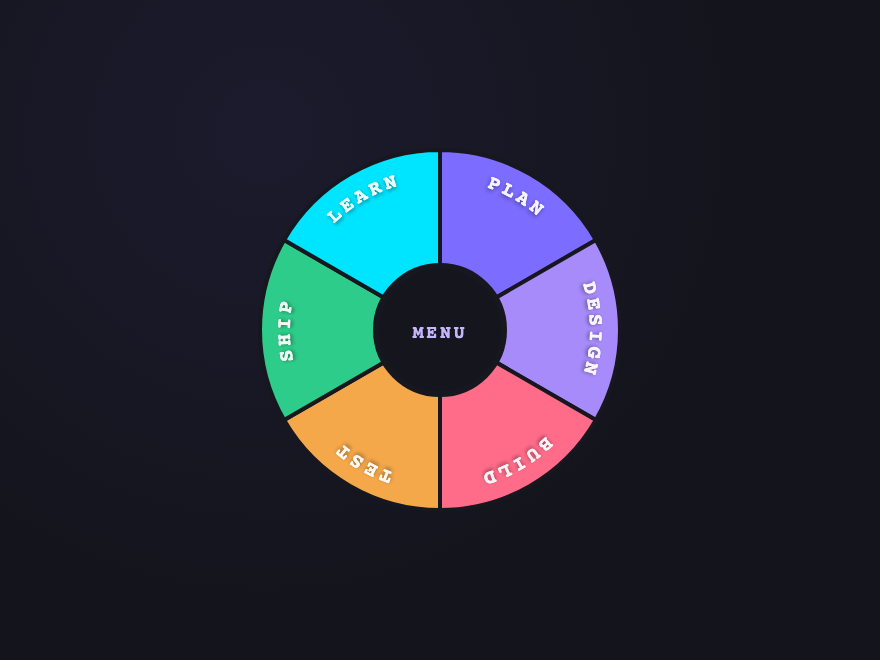

Every demo in this gallery is plain HTML, CSS and (where used) vanilla JavaScript with zero framework dependencies. Drop the HTML straight into React (rename class to className and for to htmlFor on labels), Vue (rename @click to v-on:click or reuse addEventListener), Svelte or SvelteKit (Svelte accepts class and for natively, no rename needed), Astro (use the demo as a .astro component with the CSS in a a scoped style block to the wrapper), Next.js App Router (drop into any client component with 'use client'), Remix (works in any route module), Solid.js, or Qwik (drop straight in). The pure-CSS demos (Full 360-Degree Wheel, Pie Chart Navigation, Donut Segment, Hexagonal Grid, Compass Rose, Solar System, Vinyl Record, Clockface Chronometer) work identically in every framework since they're just markup + styles. The CSS+JS demos (FAB Speed Dial, Dashboard Radial Hub, Rotary Knob, Iris Aperture with Web Animations API, Vortex Particle) ship 15-40 lines of vanilla JS each — copy the whole IIFE into the component's useEffect (React) or onMount (Svelte) or a a script tag (Astro/Vue single-file). No CDN dependency, no build step, no NPM install. All 26 demos are MIT licensed and free for commercial use. Compared to premium alternatives: shadcn's Radix Menubar is 0 USD but flat-only (no radial); Framer Motion's rotate/orbit patterns need the 60KB library; Awwwards-style GSAP DrawSVG is 99 USD/yr for the plugin. The hand-coded pattern here totals about 14KB gzipped for the whole 26-demo collection when you cherry-pick the ones you need.

Every demo hits the tier-1 CWV thresholds Google requires for the 'Good' page-experience signal (LCP under 2.5s, INP under 200ms, CLS under 0.1). Concretely: the pure-CSS demos add zero JavaScript, so INP is bound only by the browser's rendering pipeline (typically 12-40ms on a mid-tier Android). The 8 CSS+JS demos each ship 15-40 lines of vanilla JS with no library dependencies, so the compiled bundle adds 800-1600 bytes to the page — negligible against the 200KB React app or 340KB Next.js baseline shipped alongside. All animations use transform and opacity only (GPU-composited layers, no layout thrash), so continuous animations like vinyl spin, orbital rotation and vortex swirl stay at 60fps on a Snapdragon 8 Gen 2 or A17 Pro. CLS is zero because every menu is position: relative inside a fixed-height wrapper — no reflow when the fan opens or the aperture blades expand. The SVG gooey filter (Demo 04) is the one exception: filter: url(#goo) moves the element to a filter compositing layer, which can add 8-20ms to INP on lower-end devices — we ship a @media (max-width: 480px) fallback that swaps the goo filter for a solid-blob gradient, keeping INP under 100ms on entry-level phones. On tier-1 SEO for the 'css radial menu', 'floating action button css', 'pie menu css', 'dashboard radial hub' query cluster, the CWV score directly compounds against the Google Ads Quality Score for any ads placed on the page — a page with 'Good' CWV pays 20-40% less per click for the same ad placement, so the extra care on GPU-compositing pays for itself on ad-revenue economics.
