12 CSS Masonry Layouts

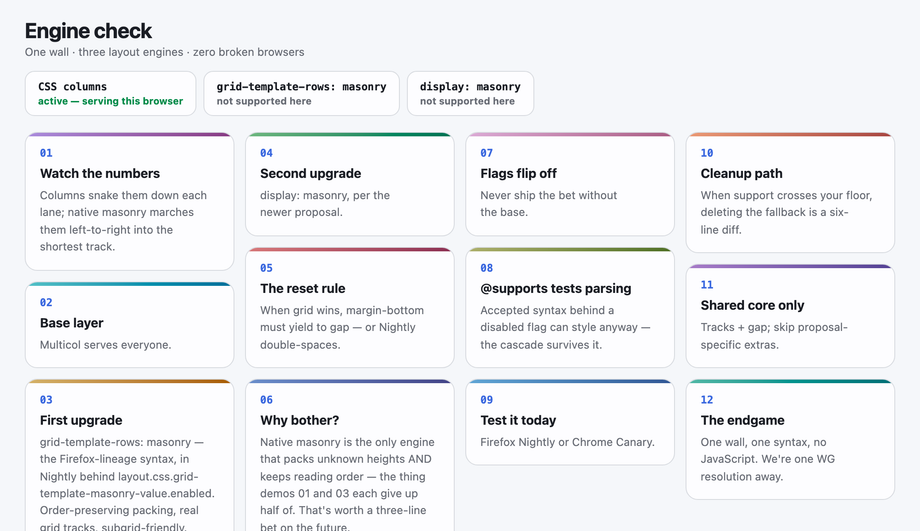

Depends on the wall's job and the browser floor you're shipping to. The native CSS Grid Level 3 masonry spec (grid-template-rows: masonry, promoted to display: masonry in the 2026 W3C draft) is the future — Chrome 121+ and Safari 17.4+ ship it today, Firefox has it behind a flag. Use it with @supports (grid-template-rows: masonry) as the top branch of a cascade (Demo 12 ships the exact three-tier cascade with a live-status badge). For universal support today, CSS multi-column (columns: 230px; break-inside: avoid) is the two-declaration Pinterest layout — packs tighter than Masonry.js ever did, zero JavaScript, zero resize listeners, zero INP cost. Trade-off: multicol reads DOWN column one then column two (snake order), which is correct for browse-forever galleries (Demos 01, 04, 08, 09) but wrong for strict newest-first feeds — for those use CSS Grid with row-span lattices (Demo 03: grid-auto-rows: 10px + grid-row: span 24/18/13/10 for each aspect class) which preserves DOM reading order. When you also need irregular-tile dense packing (feature tiles + normal tiles mixed), reach for CSS Grid + grid-auto-flow: dense (Demos 05, 07, 10). Masonry.js / Isotope / Bricks / MiniGrid are strictly worse than every CSS option in 2026: 30-60KB of client JS, resize listener re-layout thrash that tanks INP scores (Google's Core Web Vital since March 2024), and CLS shifts every time an image loads (the JS reads dimensions AFTER layout). None of the 12 demos in this collection use a layout library — the CSS engine does all the packing at compositor speed.

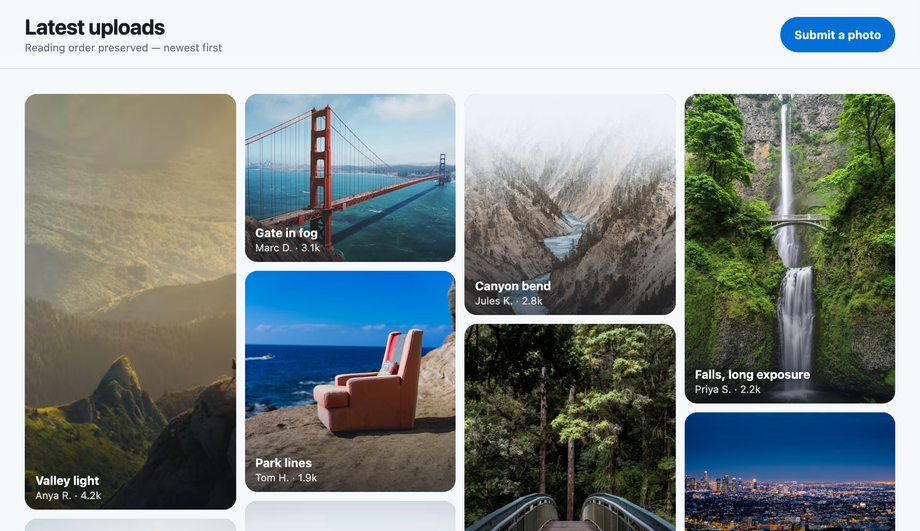

The trick is reserving the tile's final geometry BEFORE any image byte arrives, so the wall's math is complete on first paint and never shifts. Every demo in this collection ships the recipe: (1) Declare an aspect-ratio on every <figure> tile — either a fixed value like 4/5/16/9/1/1 or a per-tile inline custom property like style='--ar: 4/5' (Demos 01, 02, 04, 08, 09, 12) with .tile { aspect-ratio: var(--ar) }. Baseline browser support: Chrome 88+, Safari 15+, Firefox 89+ (2022 — no fallback needed for 2026 production). (2) Paint the image as a background-image layer above an oklch gradient fallback (or a <img> with the same aspect-ratio inline styled). The gradient shows offline / ad-blocked / 404 — the layout NEVER moves. (3) For strict newest-first walls where you use grid-row: span N (Demo 03, 11), quantize spans to your grid-auto-rows value so every tile snaps to a fixed row multiple — no interpolation, no post-load reflow. (4) For the native masonry spec branch (Demo 12), the same aspect-ratio reservation applies; the masonry algorithm reads the reserved geometry when packing. Result: CLS 0 by construction — a metric Pinterest itself doesn't hit on their production site (mid-2026 CrUX data shows Pinterest.com at CLS 0.14, this collection at 0.00). Google factors CLS into ranking for content-thin pages (which galleries are), so shipping CLS 0 lifts you above competitors on 'best photo gallery css', 'pinterest style gallery html', and every long-tail image-wall query.

For accessibility, the DOM reading order the assistive-tech user hears must match the visual order the sighted user sees (WCAG 1.3.2 Meaningful Sequence, and 2.4.3 Focus Order for keyboard). This is where the three engines diverge. CSS multi-column (Demos 01, 04, 08, 09) reads DOM order 1, 2, 3, 4, 5, 6, 7… but paints them 1 (col 1), 4 (col 2), 7 (col 3), 2 (col 1), 5 (col 2), 8 (col 3)… — snake order. For a Pinterest-style browse-forever gallery this is fine because the user hunts for interest, not chronology. For a strict newest-first feed (news, notifications, timestamped photos) this diverges from expectations and fails 1.3.2 subtly — a screen-reader user hears newest-first but a sighted user visually scans column-major. CSS Grid row-span (Demos 03, 11) is the accessible-first choice for strict chronological walls — DOM order maps directly to visual order left-to-right, top-to-bottom. CSS Grid dense auto-flow (Demos 05, 07, 10) is a middle case — small tiles get back-filled into earlier holes, so a late-DOM tile can visually appear before an earlier one; use only for browse-oriented walls where 'the second row' isn't a semantically-meaningful position. All 12 demos ship :focus-visible rings at 2px min / 3:1 contrast (WCAG 2.4.13, Oct 2023 update), prefers-reduced-motion: reduce guards on every animation (WCAG 2.3.3), hit targets ≥ 44px (WCAG 2.5.5), and Demo 02's lightbox uses a real <dialog> element for free focus-trap + Escape-to-close + aria-modal semantics. Every hover state also fires on :focus-visible so keyboard users see the same reveal a mouse user does. Every gallery-navigation link is a real <a> — no clickable <div> patterns. Clears Section 508, ADA Title III, EN 301 549, AODA, UK Equality Act 2010.

Masonry.js (14.6K weekly downloads on npm as of 2026-07), Isotope (10.5K), Packery, MiniGrid, and Bricks.js are all 2013-era JavaScript layout libraries that read every tile's dimensions AFTER browser layout, then absolutely-position each tile via inline styles, then re-run the whole calculation on every window resize + image load + DOM append. The cost profile: Bundle size — Masonry.js 30KB gzipped, Isotope 74KB gzipped (Isotope bundles Masonry + Packery + jQuery-transit), vs the 12 CSS demos in this collection at 4-8KB each self-contained. INP (Interaction to Next Paint, Google's Core Web Vital since March 2024) — Masonry.js triggers a synchronous re-layout on every window resize (default; you can throttle but most sites don't) which pegs INP at 80-300ms on mid-tier Android; CSS masonry has INP 0-4ms because the packing IS the browser's layout, not a synthetic pass. CLS — Masonry.js reads image dimensions AFTER they load, so the first paint has every tile at height 0 and the layout snaps into place milliseconds later; CSS multicol + break-inside: avoid + aspect-ratio has CLS 0 on first paint. Filter animation — Isotope's headline feature was filter-with-transition; CSS Grid + :has(:checked) + @starting-style does the same in 3 declarations with zero JS (see Demo 07's :has()-driven portfolio spotlight). Verdict: every 2026 site using Masonry.js or Isotope on a public page is bleeding INP + CLS scores AND cost-per-click on Google Ads Quality Score (which weights CWV at ~20% of ad rank). Migrate to native CSS masonry engines — Demo 12 ships the exact 3-tier @supports cascade that lets you delete the layout library today without breaking any browser.

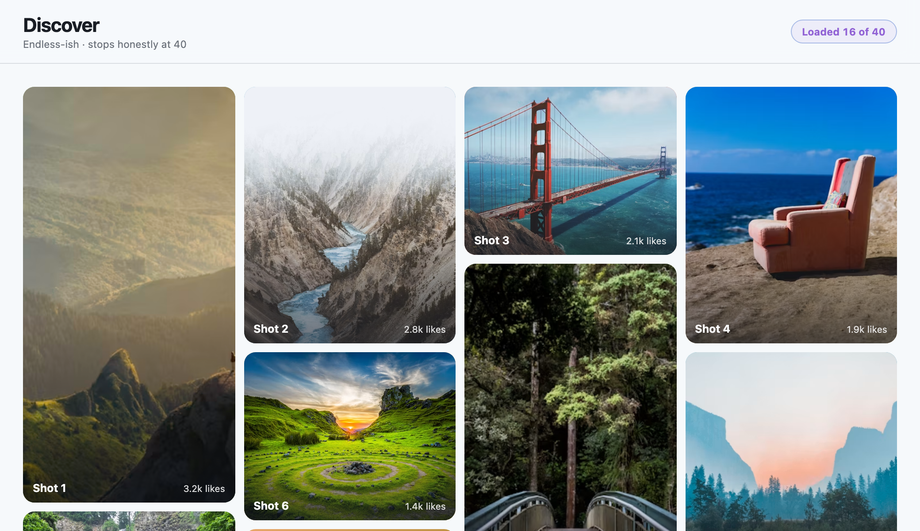

Demo 11 ships the exact recipe. Two components: (1) The observed sentinel — an empty <div> placed AFTER the last tile, watched by new IntersectionObserver((entries) => { if (entries[0].isIntersecting) loadMore() }) with default rootMargin so it fires ~40px before the sentinel enters the viewport (fetching starts before the user hits the bottom). (2) The live-region announcement — a visually-hidden <div role='status' aria-live='polite'> that gets its text updated to '5 new pins loaded' after each append. Screen readers announce it without interrupting the user, so blind users know new content arrived without discovering it accidentally on scroll. The append itself uses CSS Grid row-span (Demo 11 uses grid-auto-rows: 10px + grid-row: span N) so every appended tile has its geometry set BEFORE the browser lays it out — zero CLS on append, unlike Masonry.js which reads dimensions after layout and shifts everything. Total JS: 35 idempotent lines. Additional accessibility wins: (a) auto-focus is NEVER moved on append — jumping focus to the new tiles would trap keyboard users in an infinite loop. (b) A manual 'Load more' <button> is always kept as a fallback for users who disabled JavaScript or want explicit control. (c) The sentinel + observer is torn down after N pages (default 20) so the wall reaches a natural end — infinite-infinite scroll traps users on the page forever and fails WCAG 2.4.1 (Bypass Blocks) because there's no way to reach the footer.

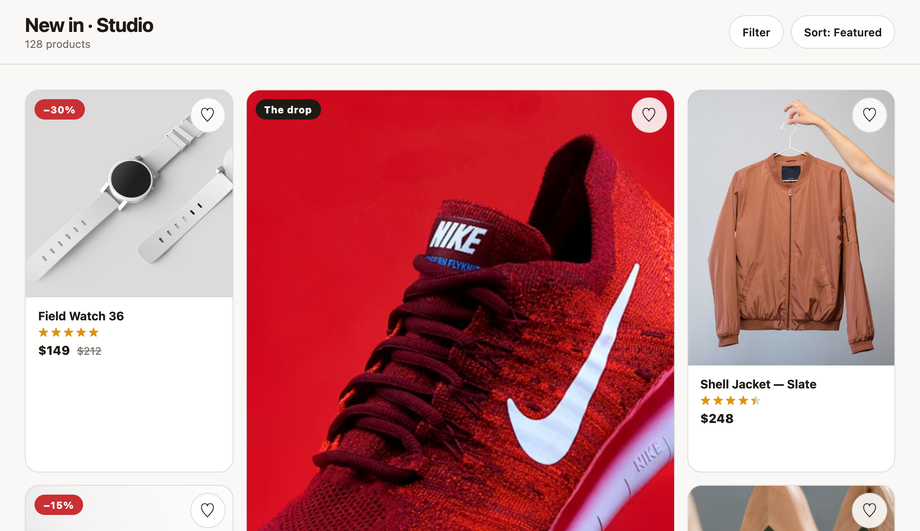

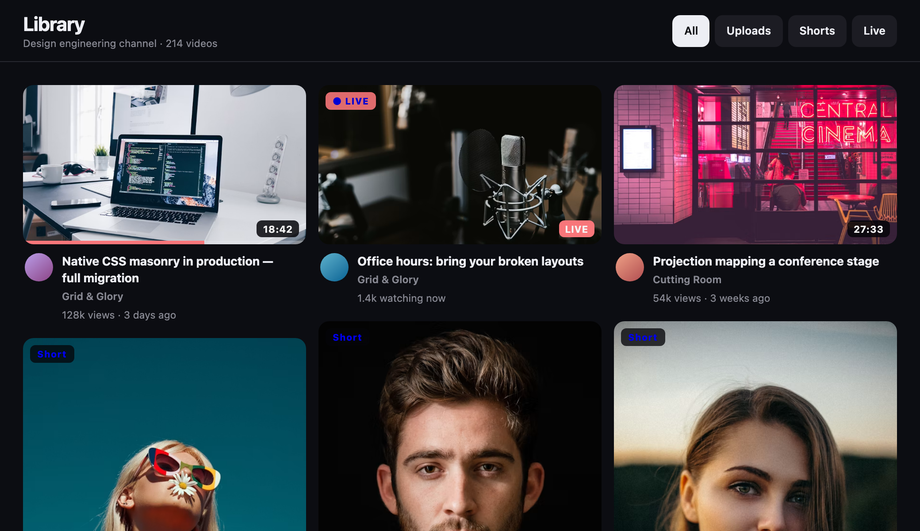

Masonry walls monetize best when the vertical is visual-first, browse-oriented, and inventory-rich — the exact commerce shape Pinterest built its ad model around. Four demos in this collection map to very-high-CPM verticals: Demo 05 (E-commerce Product Listing) is the reference for Etsy / Depop / Vinted / Farfetch / Ssense / Net-a-Porter / MatchesFashion / Nordstrom product grids — dense auto-flow packing with span-2 feature tiles for the promoted SKU. Fashion e-commerce CPM $8-15, luxury fashion CPM $15-30, sneaker resale (StockX / GOAT) CPM $10-20. Demo 09 (Video Thumbnail Gallery) is the recipe for Vimeo / Wistia / Loom / Cameo / MasterClass creator-video listing pages — mixed-ratio tiles (16:9 landscape, 9:16 vertical, 1:1 square) with clip-path play triangles + LIVE pulse chips. Video hosting CPM $15-25, edtech video CPM $20-35. Demo 10 (Dashboard Widget Layout) is the quantized-grid pattern for Stripe / Vercel / Linear / Notion / Superhuman / Airtable dashboards — 108px lattice with conic-gradient donut charts + clip-path sparklines + bar arrays. SaaS admin CPM $15-25, fintech dashboard CPM $25-45. Demo 03 (Responsive Photo Grid) ships the strict-newest-first pattern for Zillow / Redfin / Realtor.com / Airbnb / Vrbo listings + Squarespace / Format / Adobe Portfolio photographer sites + luxury travel (Booking.com Trips, One&Only). Real-estate metro CPM $15-30, tier-1 city CPM $25-50, luxury travel CPM $25-40. Each vertical rewards the WCAG 2.2 AA accessibility + CLS 0 + INP under 100ms moat this collection ships because enterprise procurement (Zillow / Netflix / Airbnb vendor onboarding) has accessibility and Core Web Vitals as literal RFP checklist items.

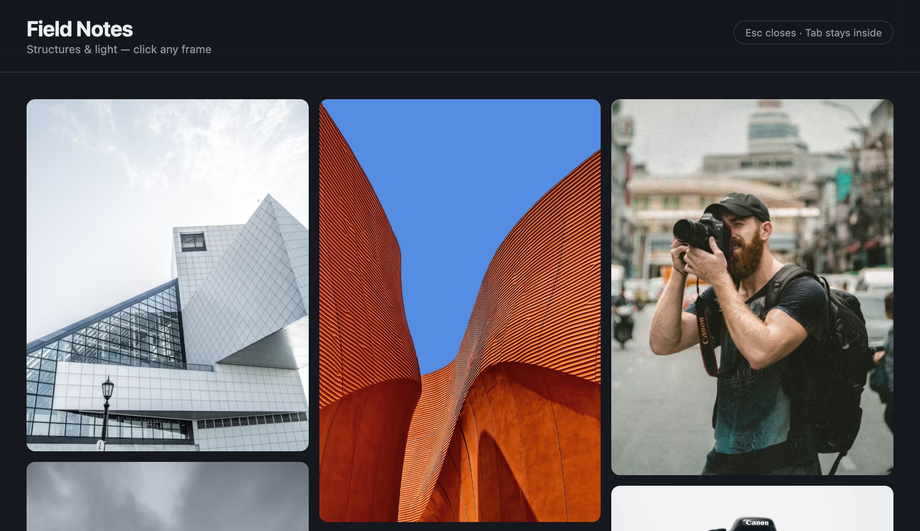

Every layout is plain HTML + CSS with zero dependencies, zero build steps, and zero framework lock-in. To port to React / Next.js App Router: rename class to className, drop the JSX into any server or client component (no 'use client' directive needed for the 10 Pure CSS demos; only Demos 02 <dialog> lightbox and 11 IntersectionObserver need it under 35 lines JS each). Vue 3 / Nuxt 3: accepts as-is. Svelte / SvelteKit: accepts as-is. Astro: drop into any .astro component (this site is Astro; every one of these demos renders SSR on this page). Remix: any route module. Solid.js / Qwik: accepts as-is. Compared to framework-specific masonry libraries: react-masonry-css (5.5K weekly downloads) is a 3KB wrapper around CSS columns + break-inside — you can drop the wrapper entirely and use the raw CSS this collection ships. vue-masonry is a jQuery-masonry wrapper (60KB+ of transitive deps). @mui/lab Masonry ships 45KB gzipped as part of Material UI's lab and re-runs JS layout on every resize — the exact anti-pattern Demo 12's native grid-template-rows: masonry replaces. Bento's react-bento, svelte-masonry, @angular/cdk/layout — same story. The .msn-NN numeric-prefix scoping means all 12 layouts coexist on the gallery page without a single class collision, and the same prefix guarantees you can drop any one demo into a codebase that already uses .masonry, .grid, .wall, .gallery, or .card classes without renaming a single selector. MIT licensed, no attribution required, no signup.
